Electric Bike  all-trrian, E-MTB bikes, ebike, electric bike, electric mountain bikes, fat-tire, full-suspension ebikes, hunting ebike Bikonit Inc


$7,899.00
SOLD OUT





Highlights

  • Bafang G510 1000W CANBUS Mid Motor
  • 1500W Peak Output
  • 160NM Torque, 200 lbs Towling
  • Max Speed 28 MPH (45 KPH)

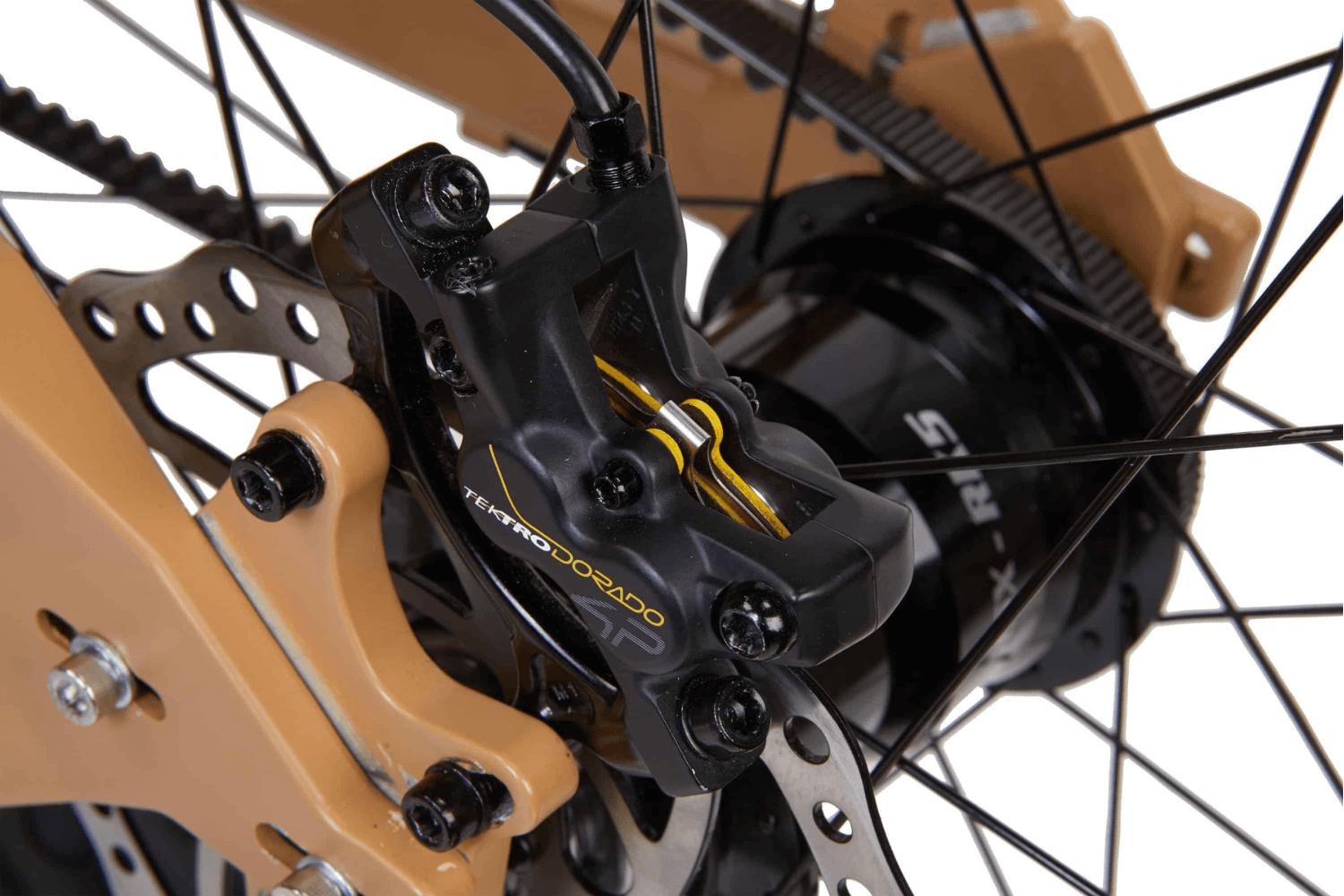

  • Tektro HD-725 4 Piston Hydraulic Brakes
  • 203 mm Disc Rotors
  • Power Cut Off Function
  • On Both Front & Rear Wheels

  • Dual Battery Design Al Frame
  • LG Chem 21700 Cells
  • Max Capacity 48V 30 Ah
  • Max rang reaches 100M+ (Dual Battery)
  • Auto Balance Function
  • Auto Battery Maintenance


  • Rohloff Inner 14 Speed Gear
  • Rohloff Shifter On Right Hand

  • 4 Ride Modes
  • Pedal Like a Normal Bike
  • Ride with Pedal Assist
  • Ride with Thumb Throttle like a Scooter
  • Walk Assist


  • Maxxis Minion FBF, 26" x 4.8"
  • All-terrain


  • RST Renegade Air Suspension
  • 120 mm Travel
  • Lock-out


  • Gates Carbon-Mixed Transmission Belt


  • Bafang Color LCD
  • Backlight Function
  • Auto-adjustable Brightness


  • Quick Release 150 mm Front Hub, Easy to Carry

Electronics

Charger:

 48V 5A 110V~240V Quick Charger

Battery:

LG 48V 30 Ah

Controller:

 Bafang CANBUS Intergraded

Display:

Bikonit Color LCD with Backlight, Auto-adjustable Brightness, USB Port

Motor:

 Bafang G510 Ultra Max Mid Motor 1000W

Ride Modes:

 Pedal / Pedal Assist / Throttle.

Throttle Version:

 Thumb Throttle on Left Hand

Range:

 *90~100M+ (Pedal Assist)

Wiring:
 Water Resistant Connectors ‍with Quick Plugs

* Range Depends on Terrain / Rider / Environment etc.

Bike Parts/Specs

Bike Weights:

70.8 lbs without battery

Battery Weight:

8.62 lbs / pc

Frame:

6061 Aluminum Alloy

Fork:

RST Renegade Air Suspension 120 mm Travel, Lock-out

Rear Sprocket:

Gates 26T Belt

Chain Sproket:

Gates 60T Belt with Bafang 170 mm Crank

Chain:

Gates Carbon-mixed Belt

Front Hub:

15 mm Quick Release, 150mm Hub Spacing

Gear Shifter:

Rohloff Shifters

Rear Hub:

Rohloff Inner 14 Speed

Brake System:

Tektro HD-E725 4 Piston Hydraulic 203 mm Rotor. Power Cut Off Function

Tire:

Maxxis Minion FBF, 26" x 4.8" , All-terrain

Rim:

Aluminum Alloy, Double Wall, 100 mm Width, 36 Hole

Pedal:

Cityway CNC

Saddle:

SR Saddle

Handle Bar:

Promax Aluminum Alloy, Promax 740mm Length, Low Rise

Stem:

Aluminum 31.8*60 mm Fixed

Grips:

Velo Grips Lock on

Standover Height:

29''

Weight Capacity:

300 lbs

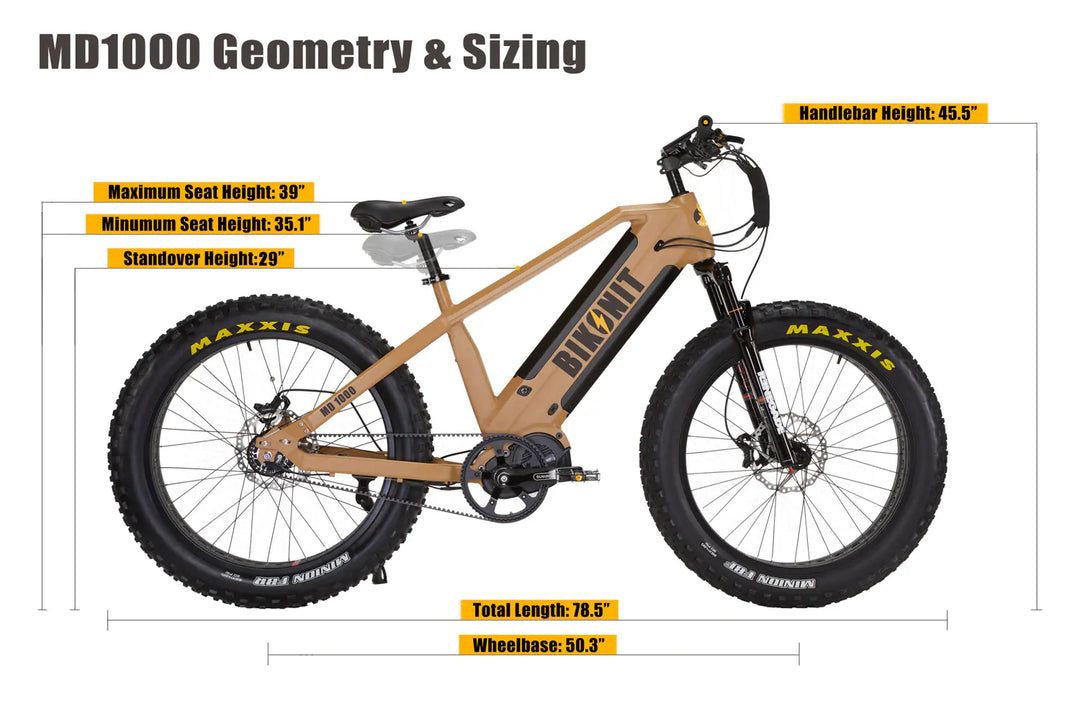

Geometry&Sizing
