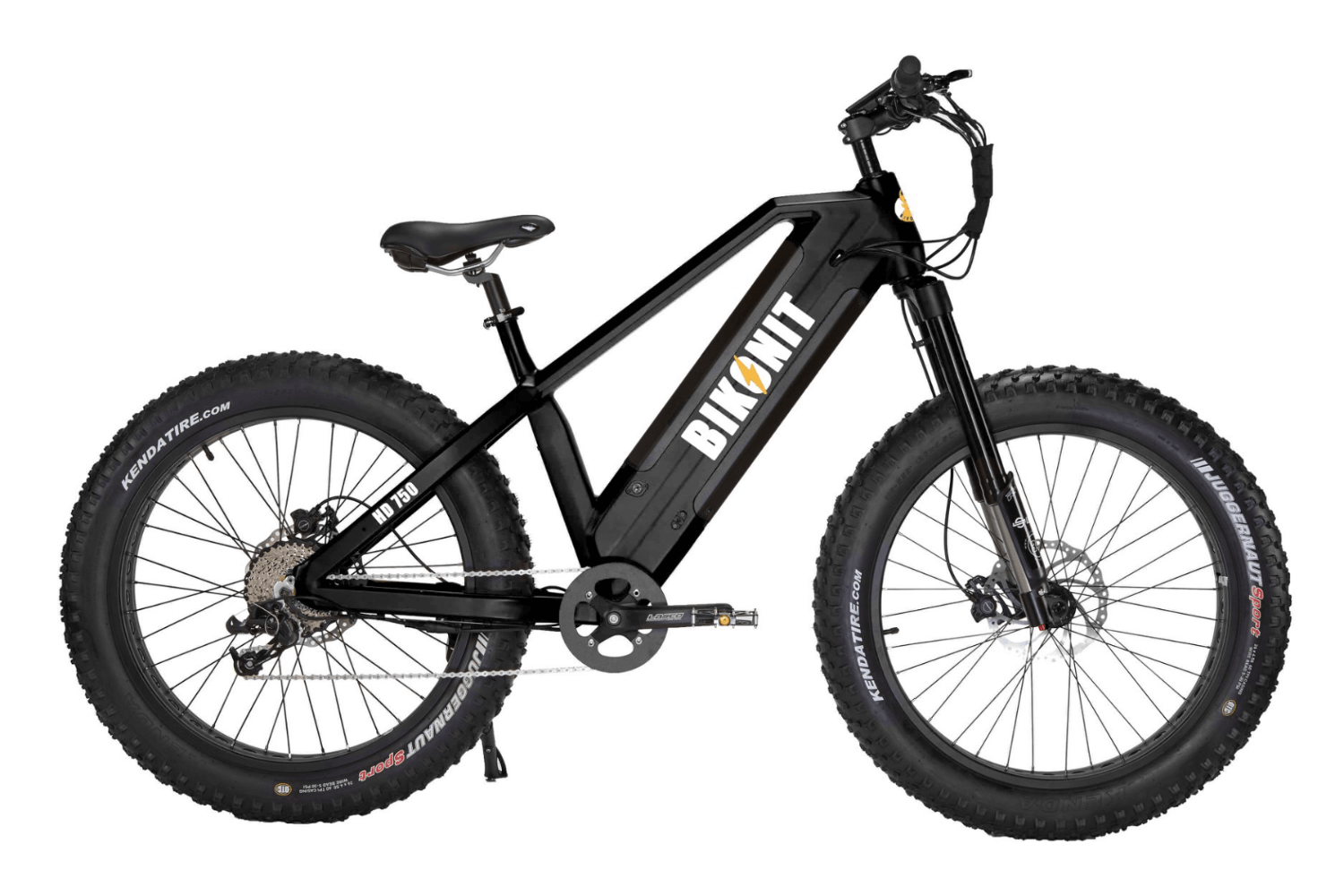

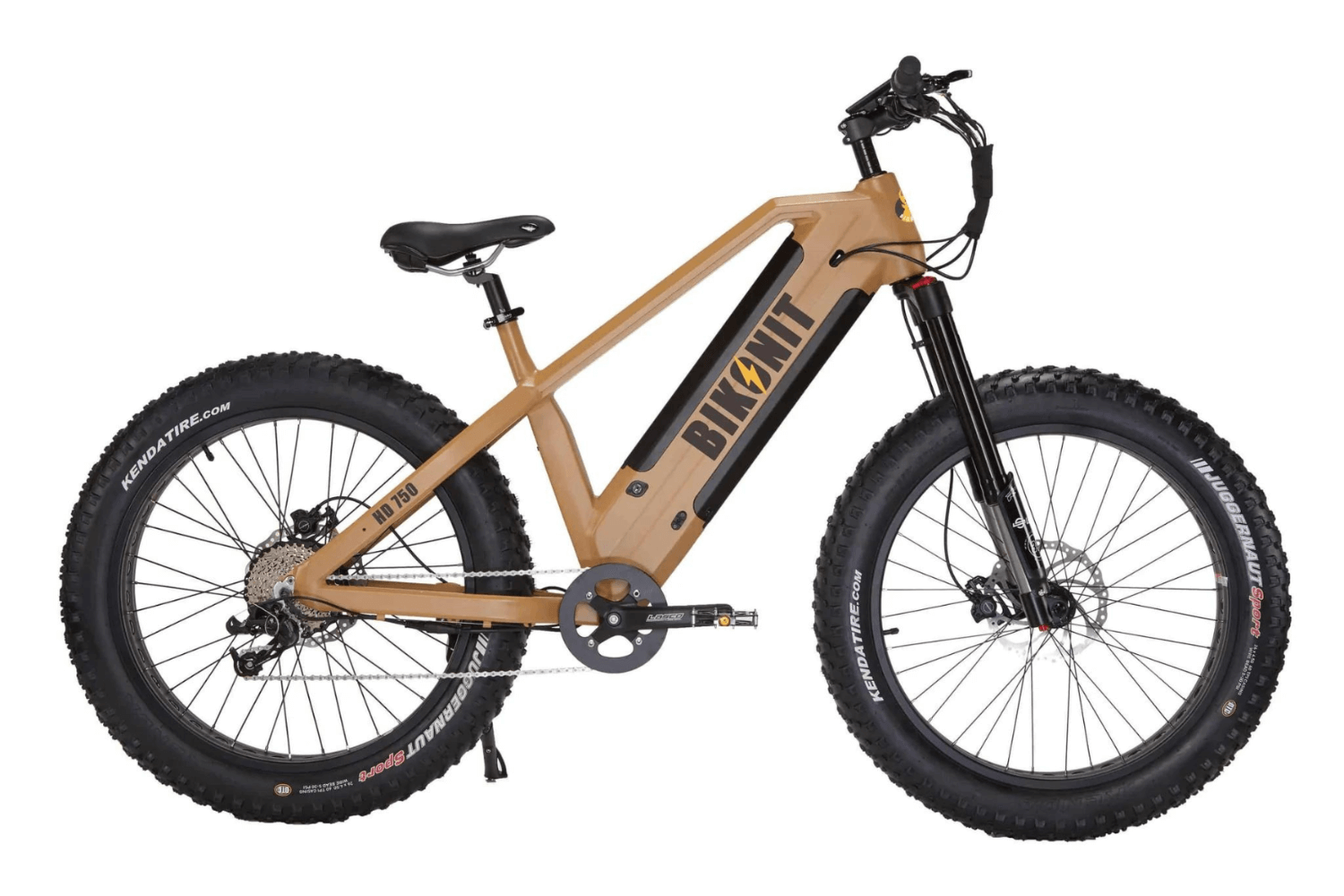

Warthog HD 750
$2,899.00 USD
Unit price perShare


SPECIFICATIONS HIGHLIGHTS
Motor

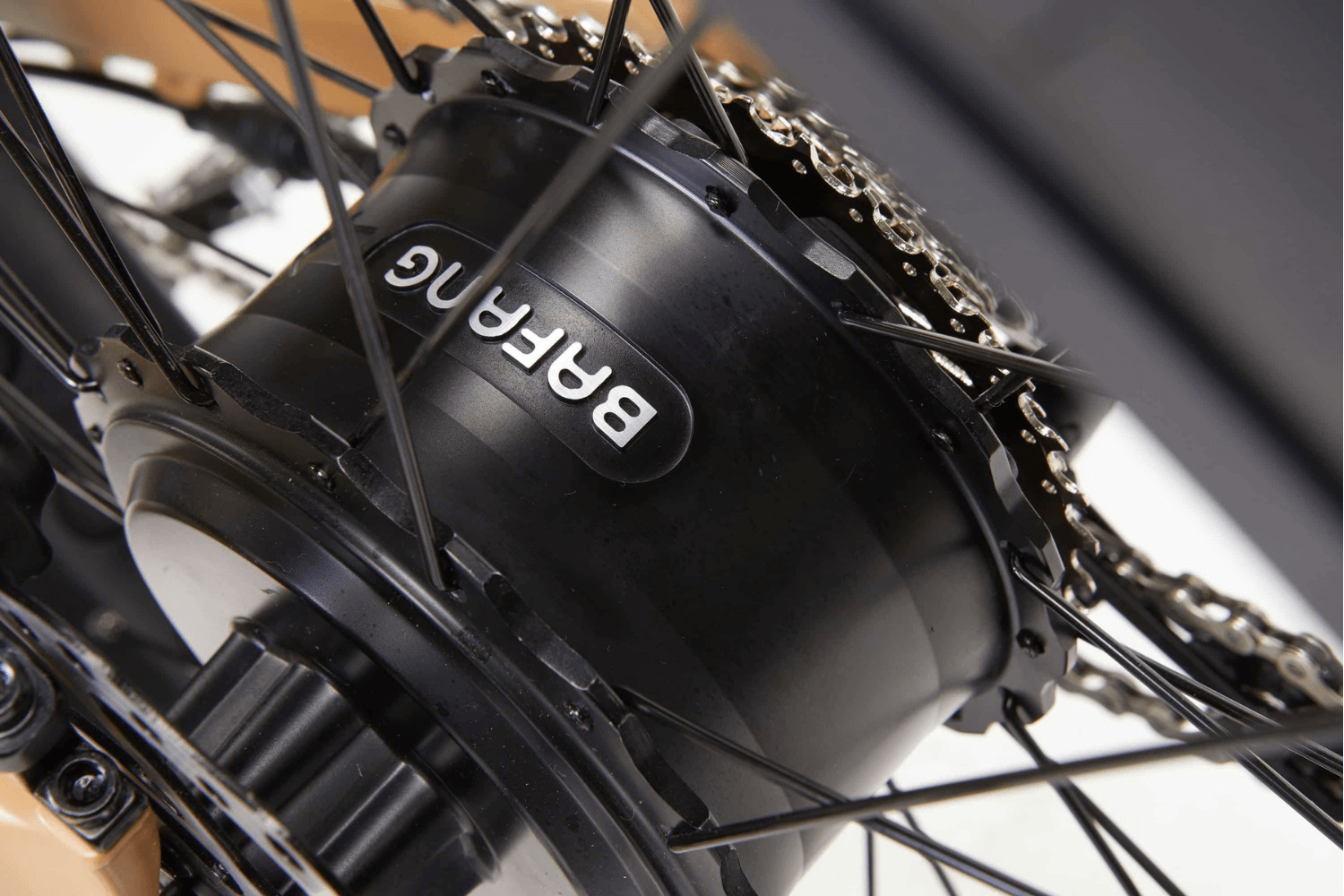

Bafang 750W Geared Hub Motor
Ultra Max (1000W Peak Output)
Max Speed
20 MPH (32 KPH)
Display
Bikonit Color LCD
Range
55~70Miles+ (Pedal Assist) --Dual Battey
Gear

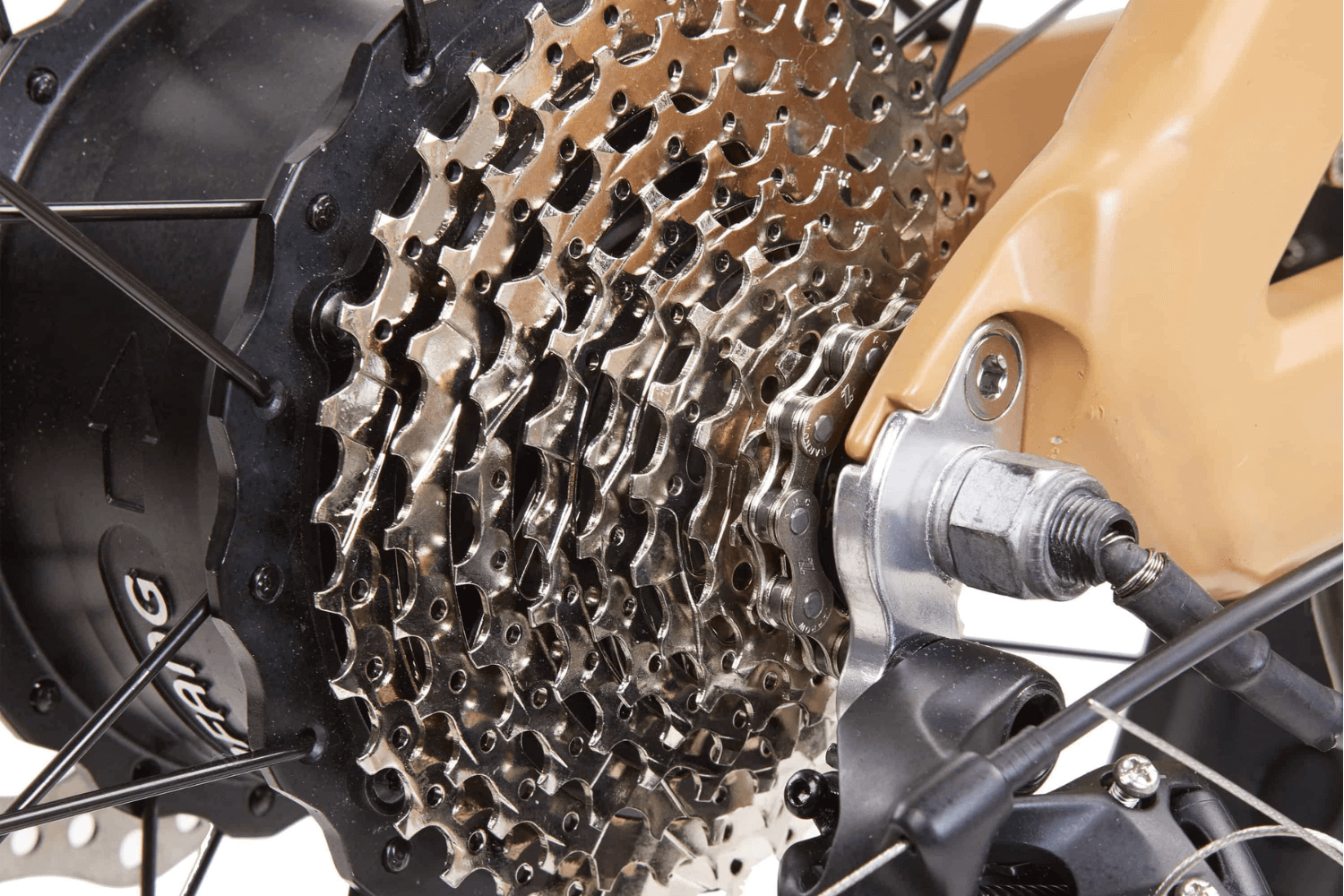

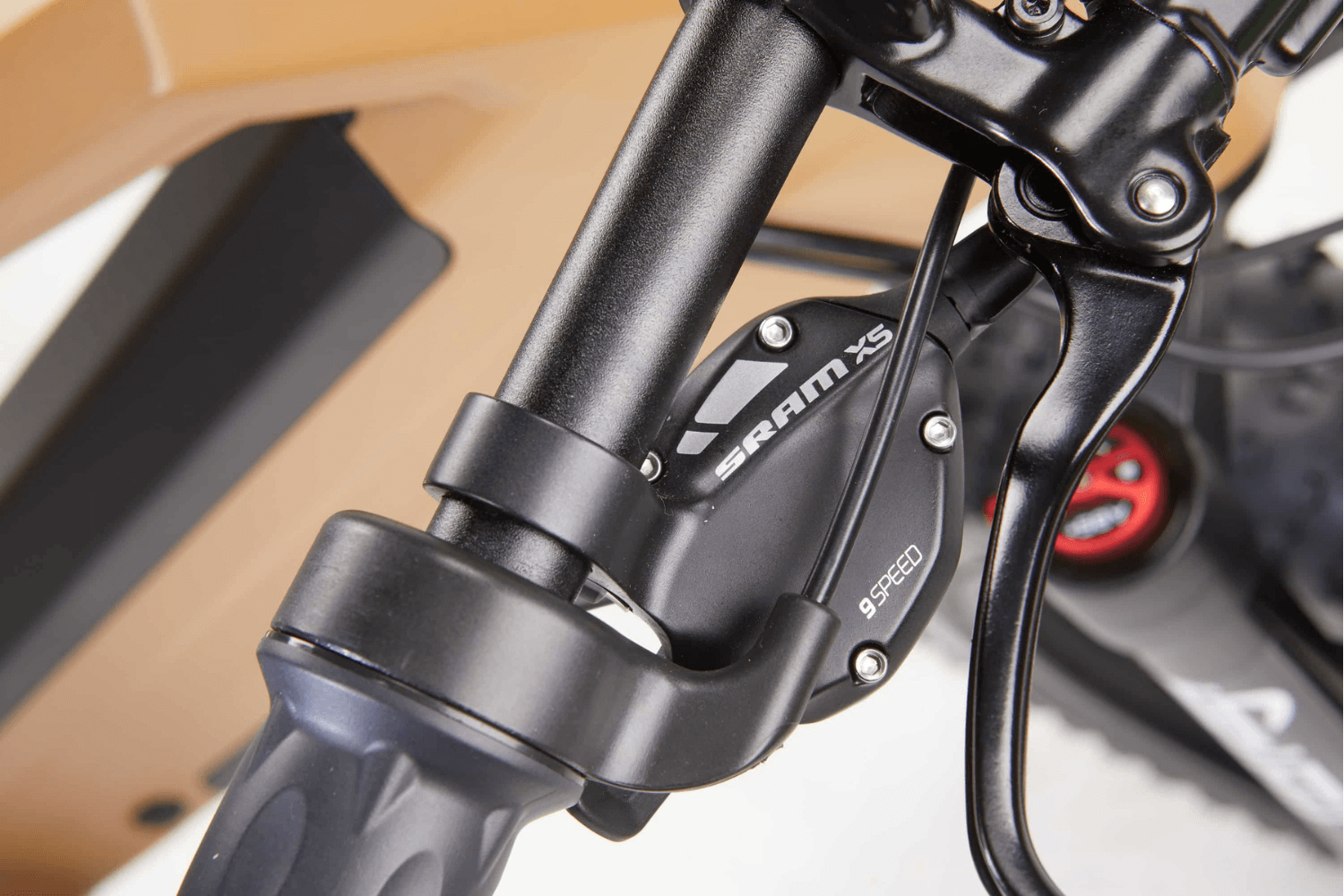

Sram X-5 9 speeds
Tire

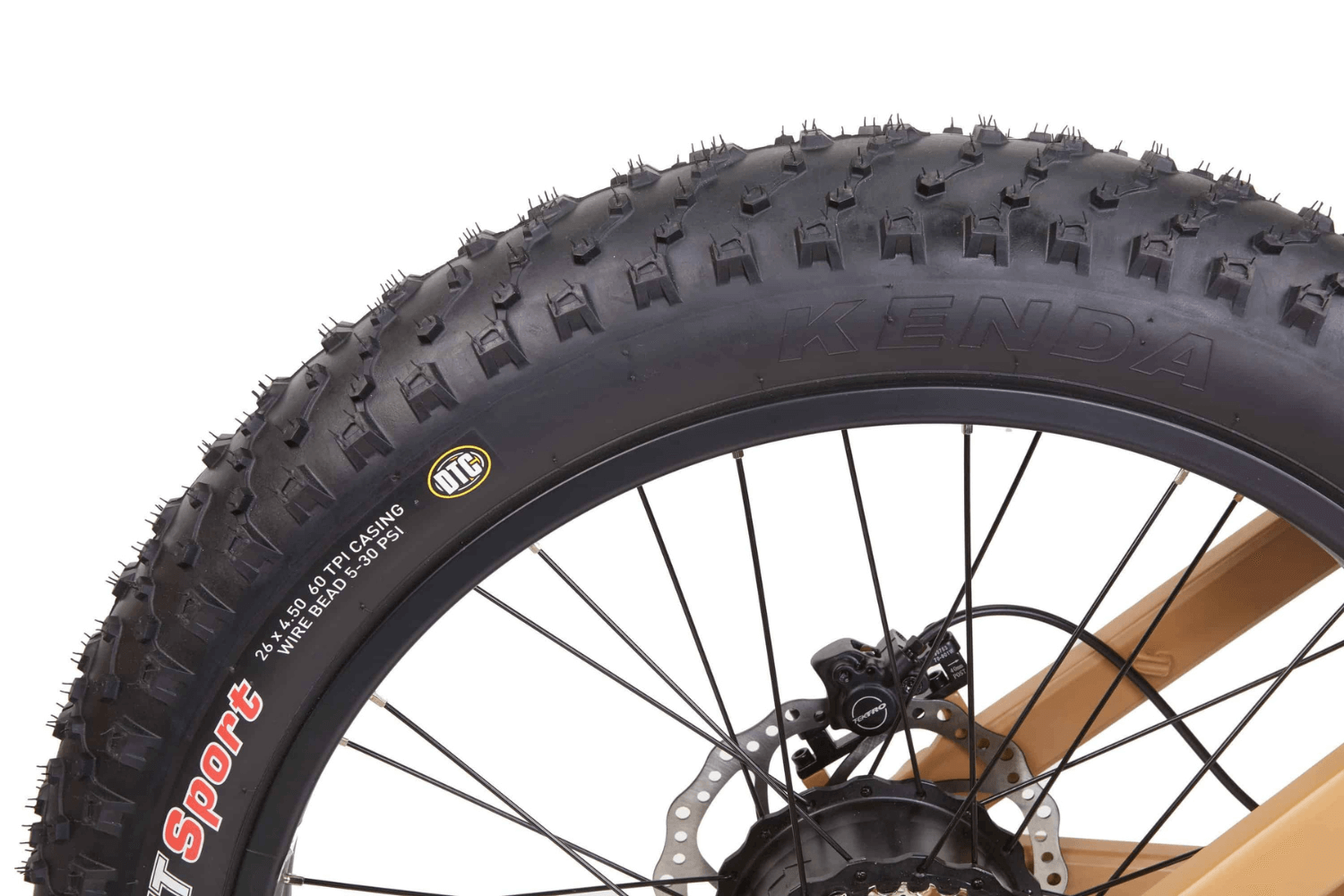

Kenda Juggernaut 26*4.5''
Fork

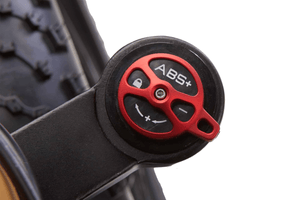

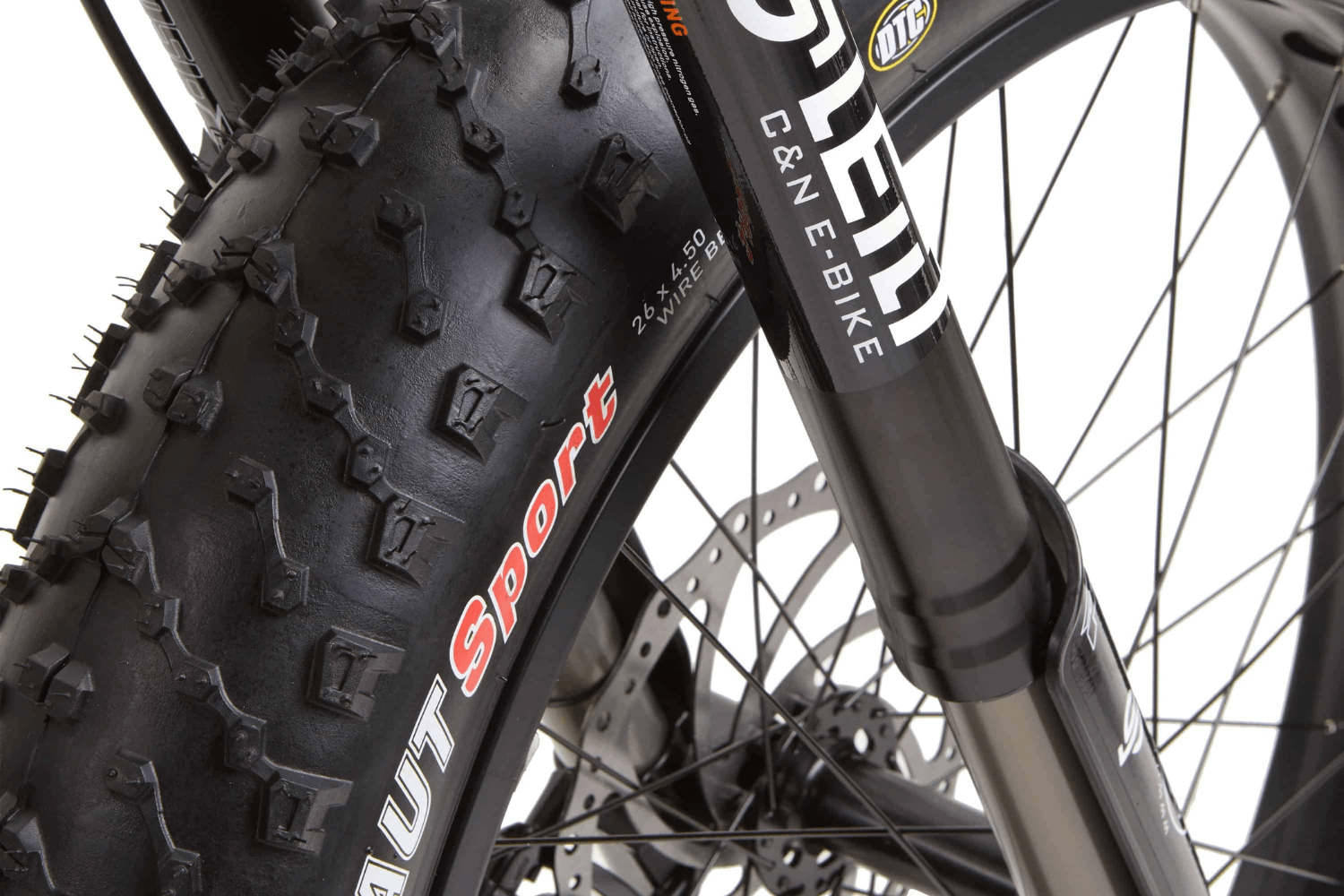

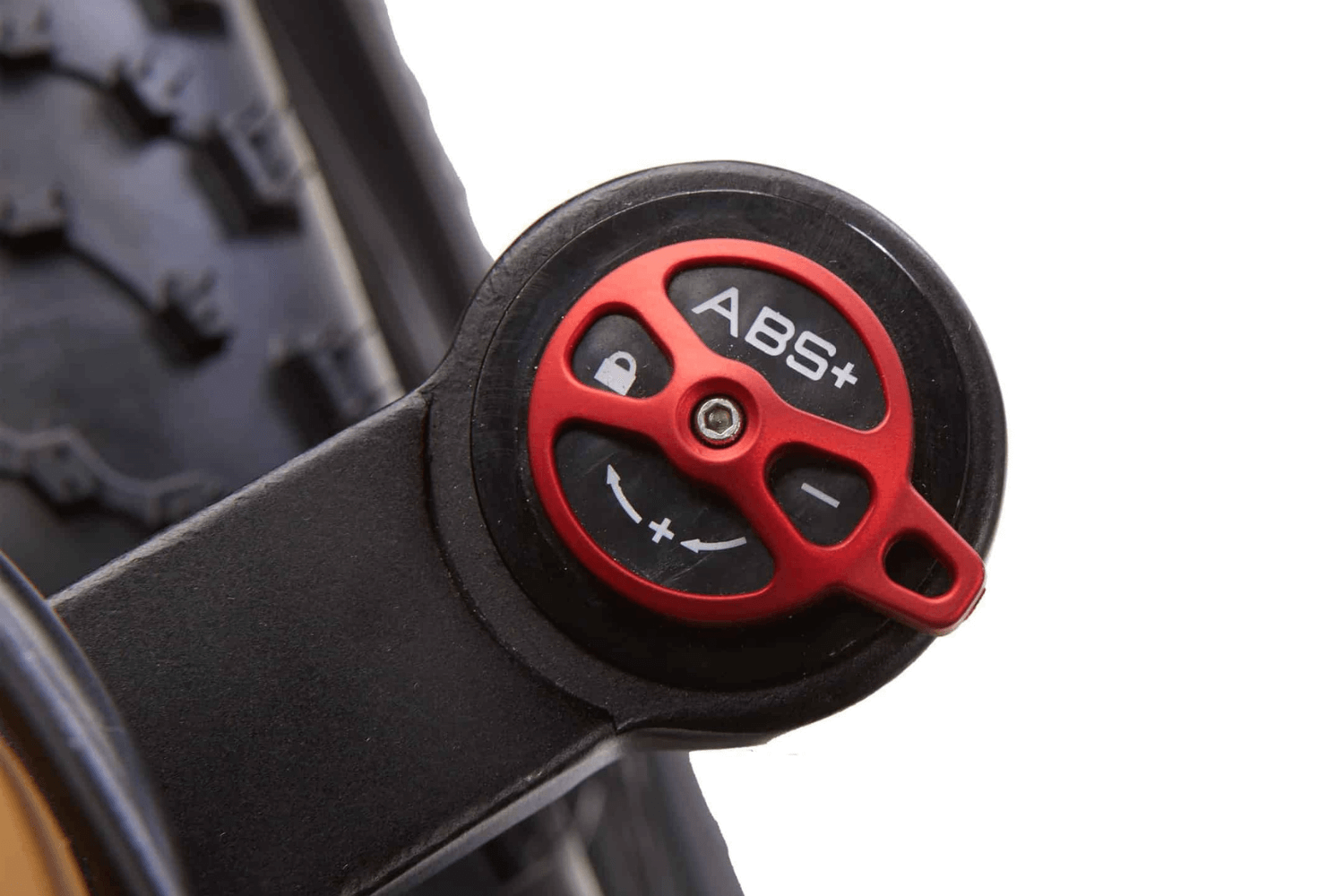

120 mm Travel Bikonit Customized Air Suspension
Ride Modes
Pedal / Pedal Assist / Throttle
Capacity
Torque: 80NM , 100 lbs Towling
Weight Capacity: 200lbs
Charger: 48V 5A Quick Charger
Controller: KT48V25A
Throttle Version: Half Grip Twist Throttle on Right Hand
Wiring: Water Resistant Connectors with Quick Plugs
Bike Weights: 64 lbs without Battery

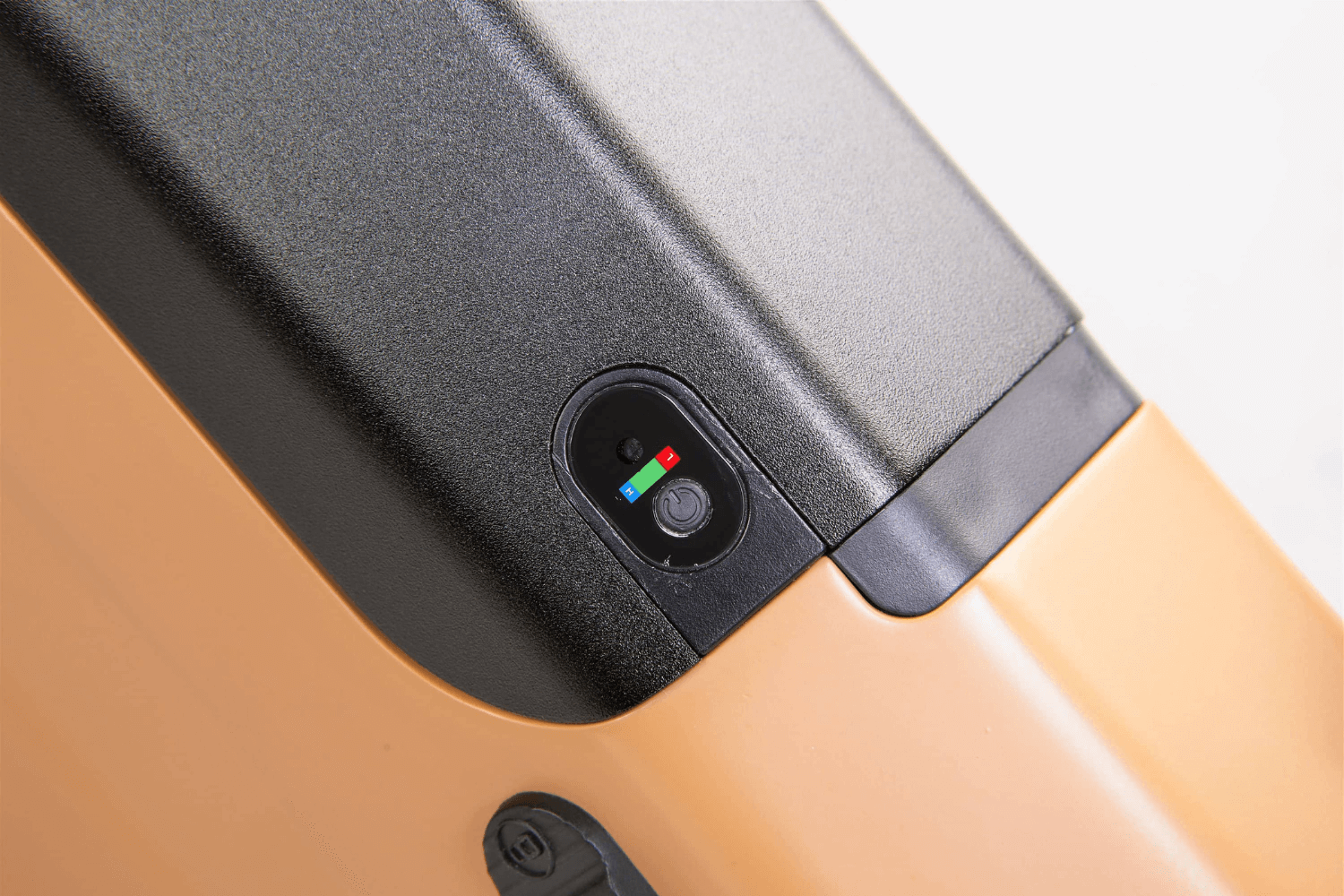

Battery Weight: 8.62 lbs / pc
Frame: 6061 Aluminum Alloy

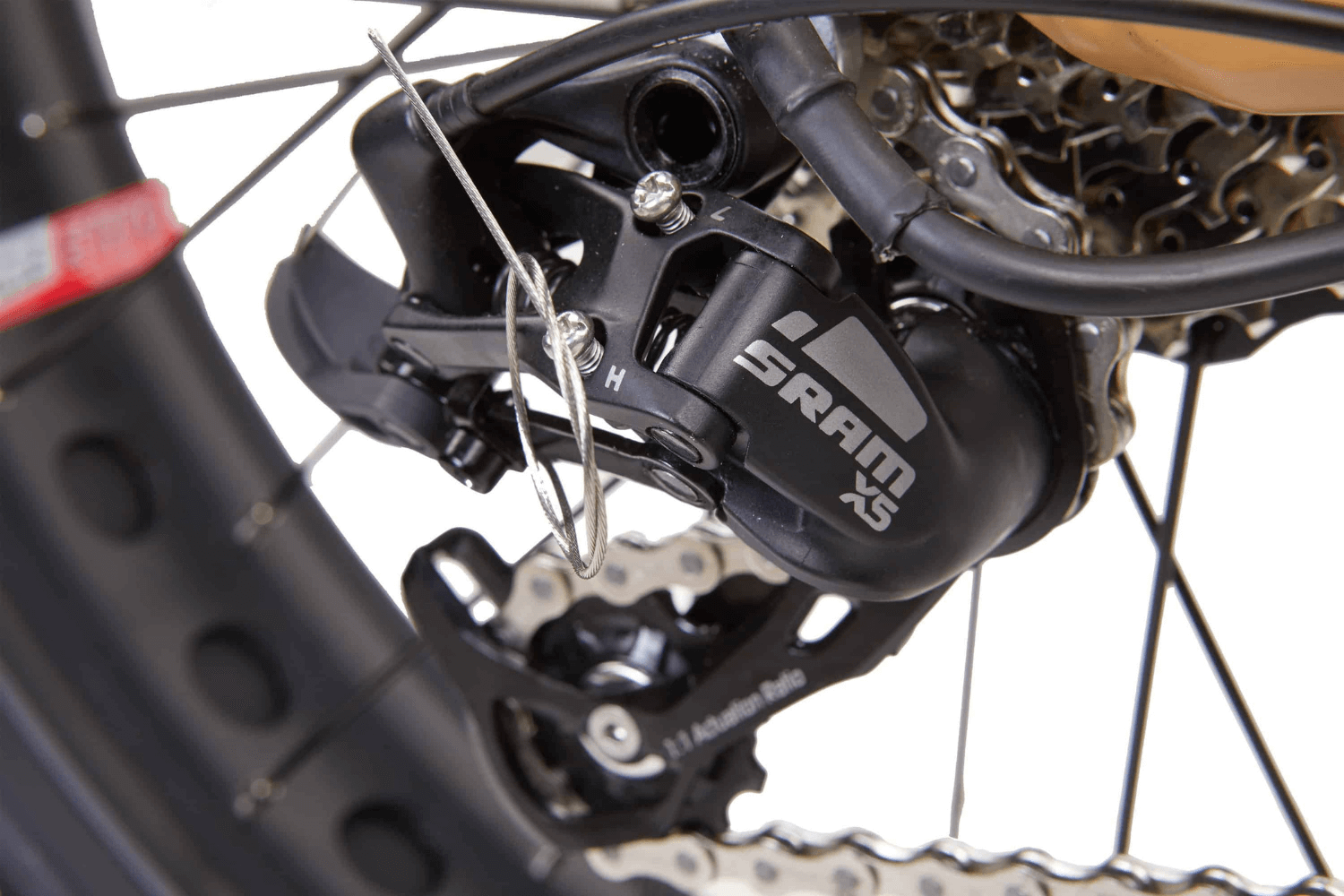

Rear Sprocket & Derailleur: DNP 13T-34T/Sram X-5

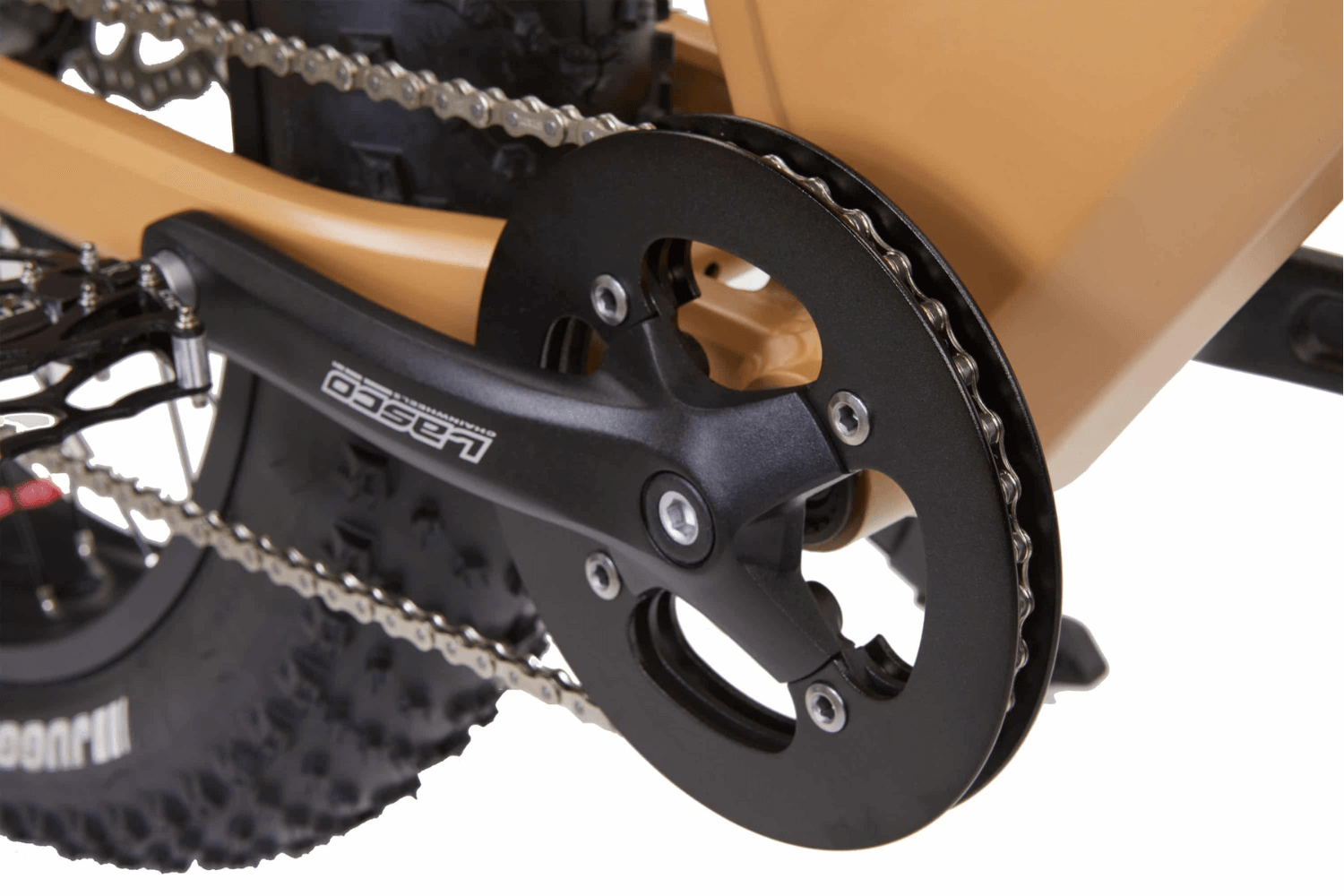

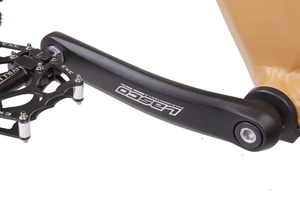

Chain Sproket: LASCO 38T with 170 mm Crank
Chian: KMC Ebike Profession
Front Hub: 15mm, 150mm Hub Spacing

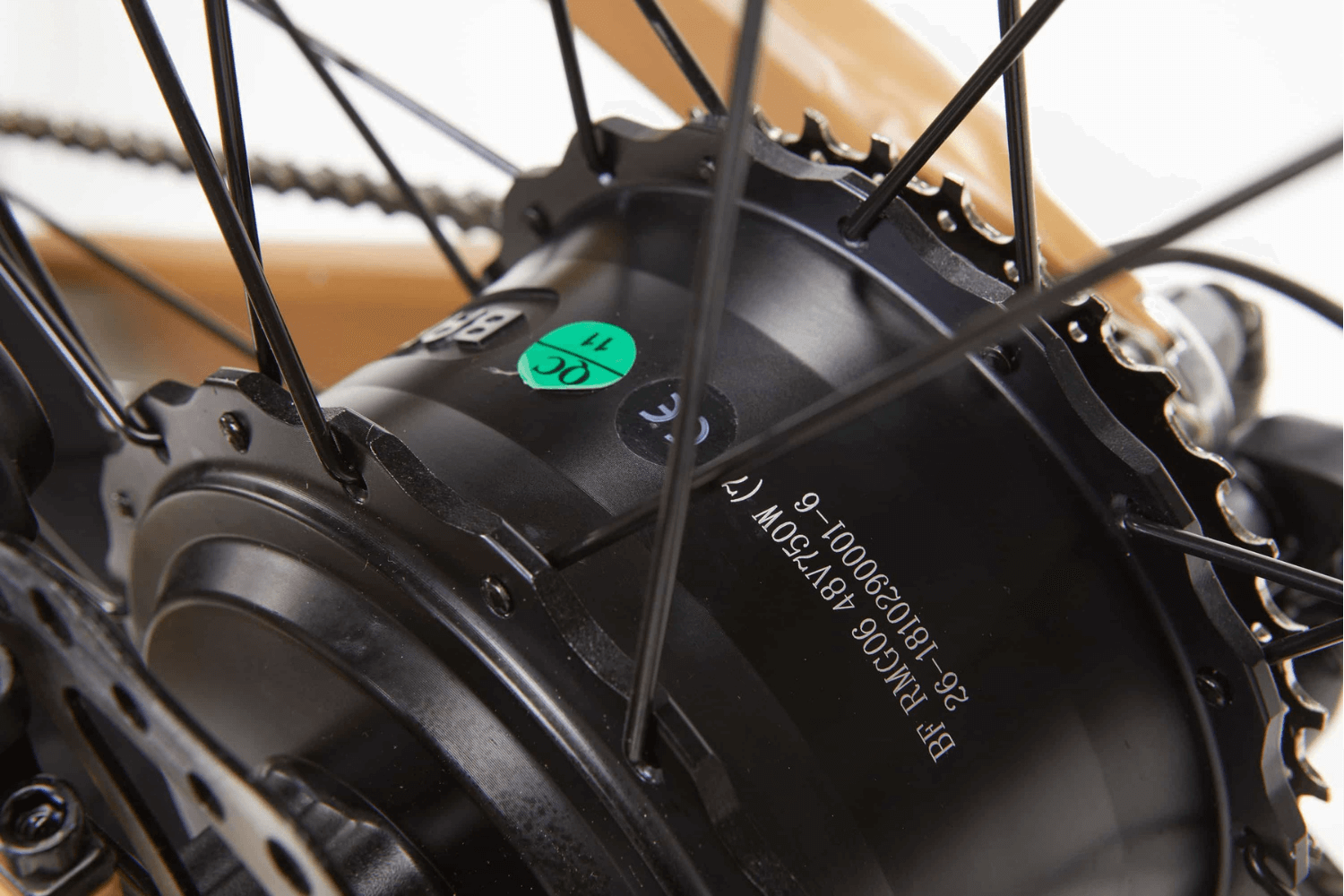

Rear Hub: Bafang 750W Geared Hub Motor

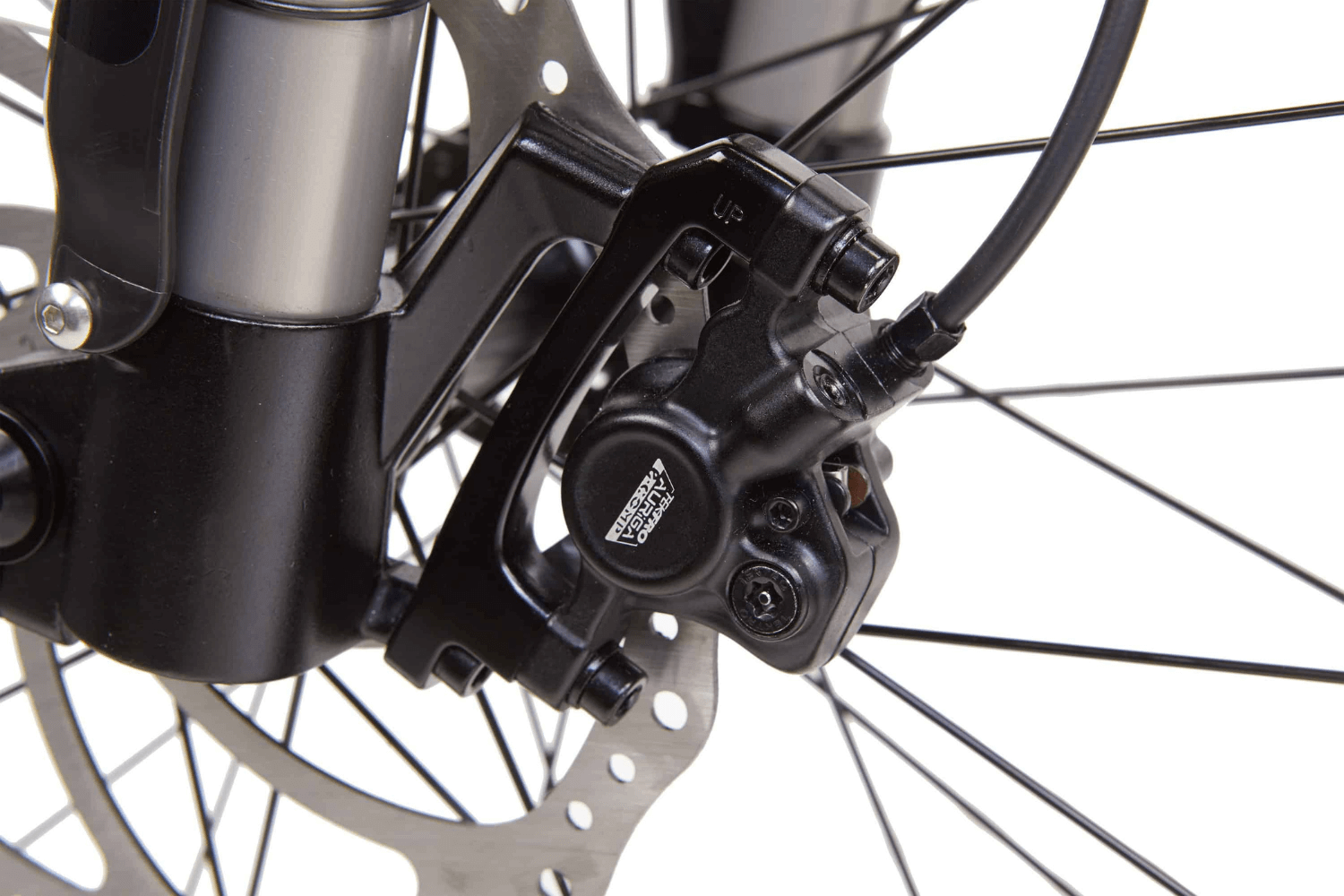

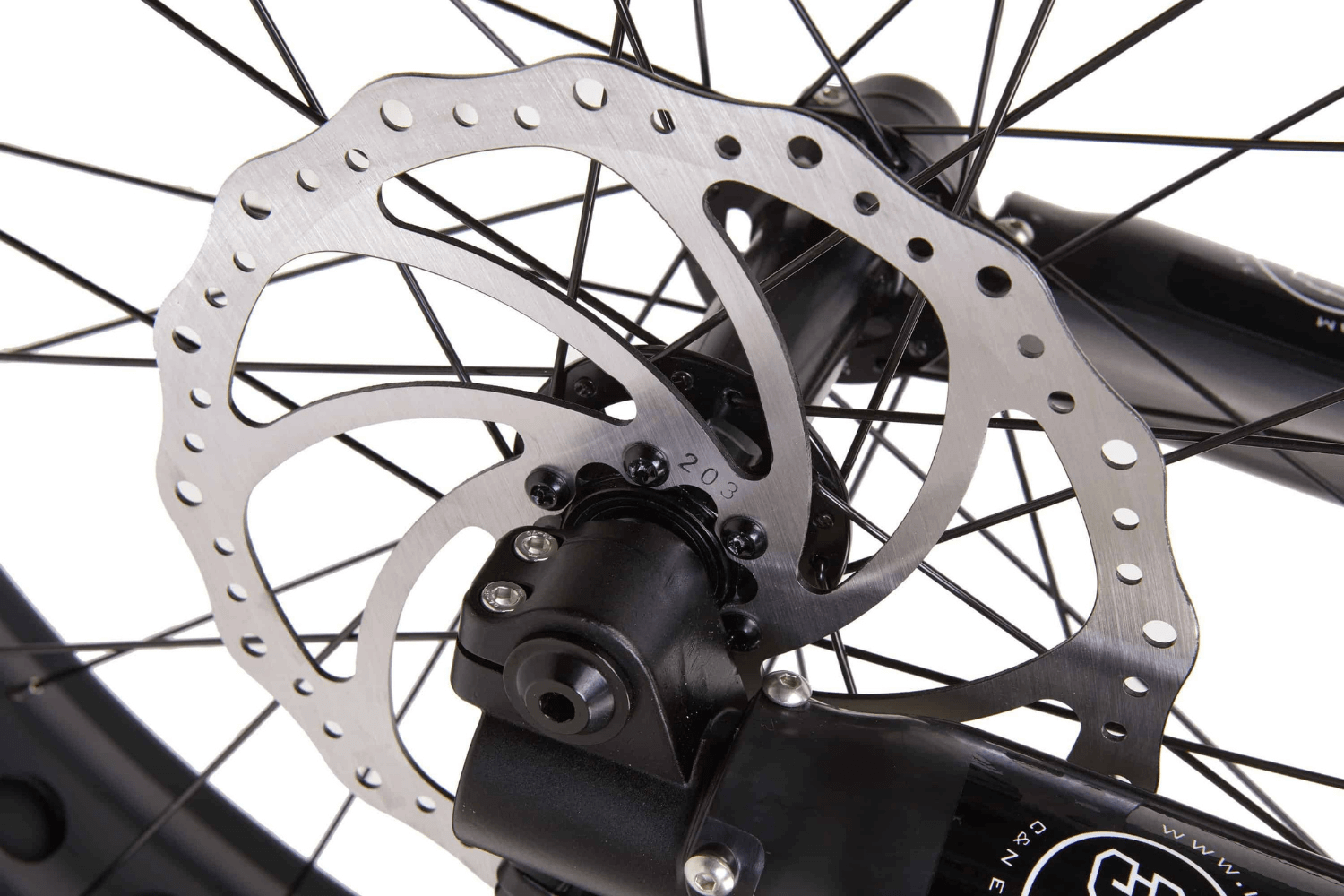

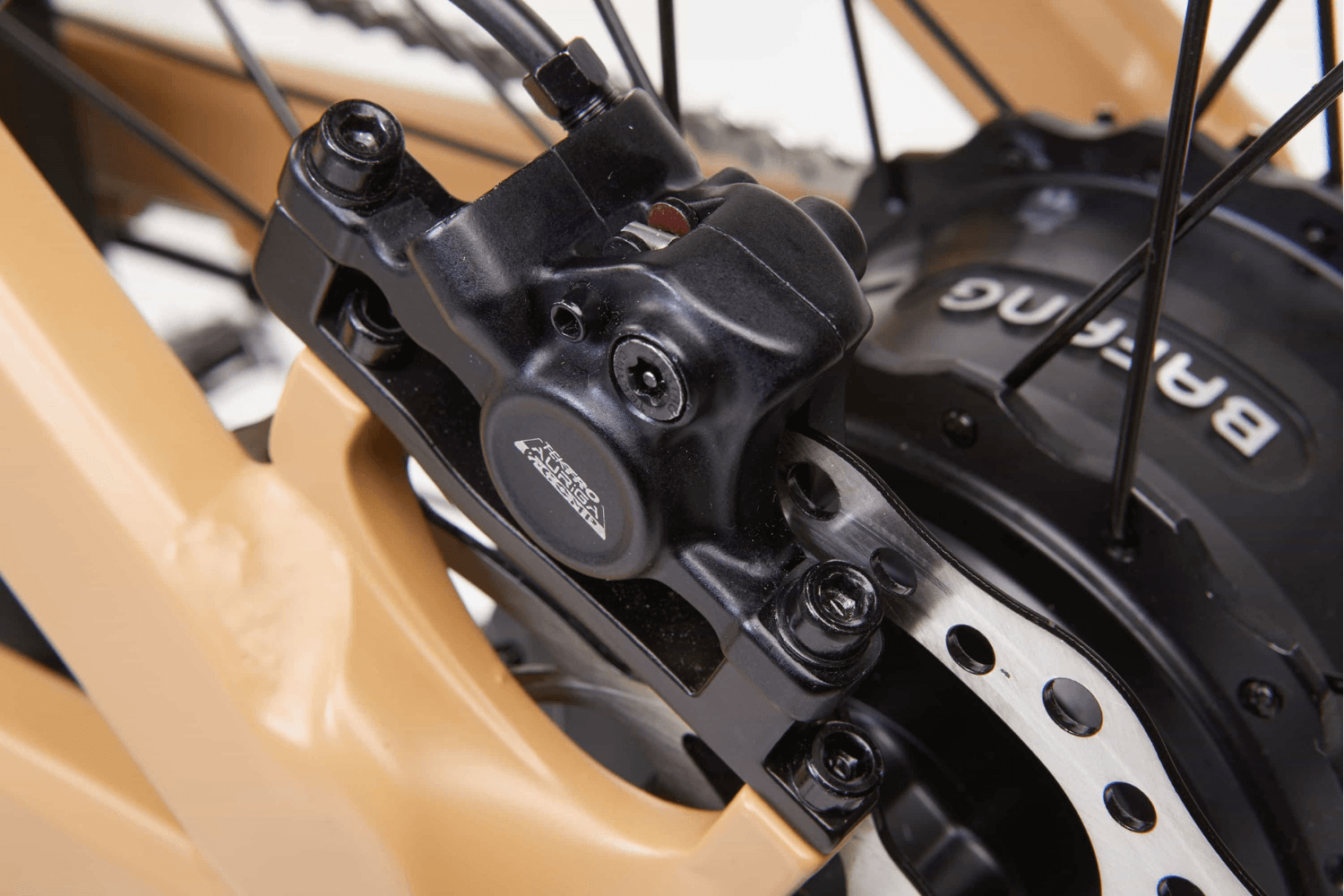

Brake System: Tektro 2 Piston piston hydraulic Brake with 203 mm Rotors, Power Cut Off
Rim: Aluminum Alloy, Double Wall, 100 mm Width, 36 Hole

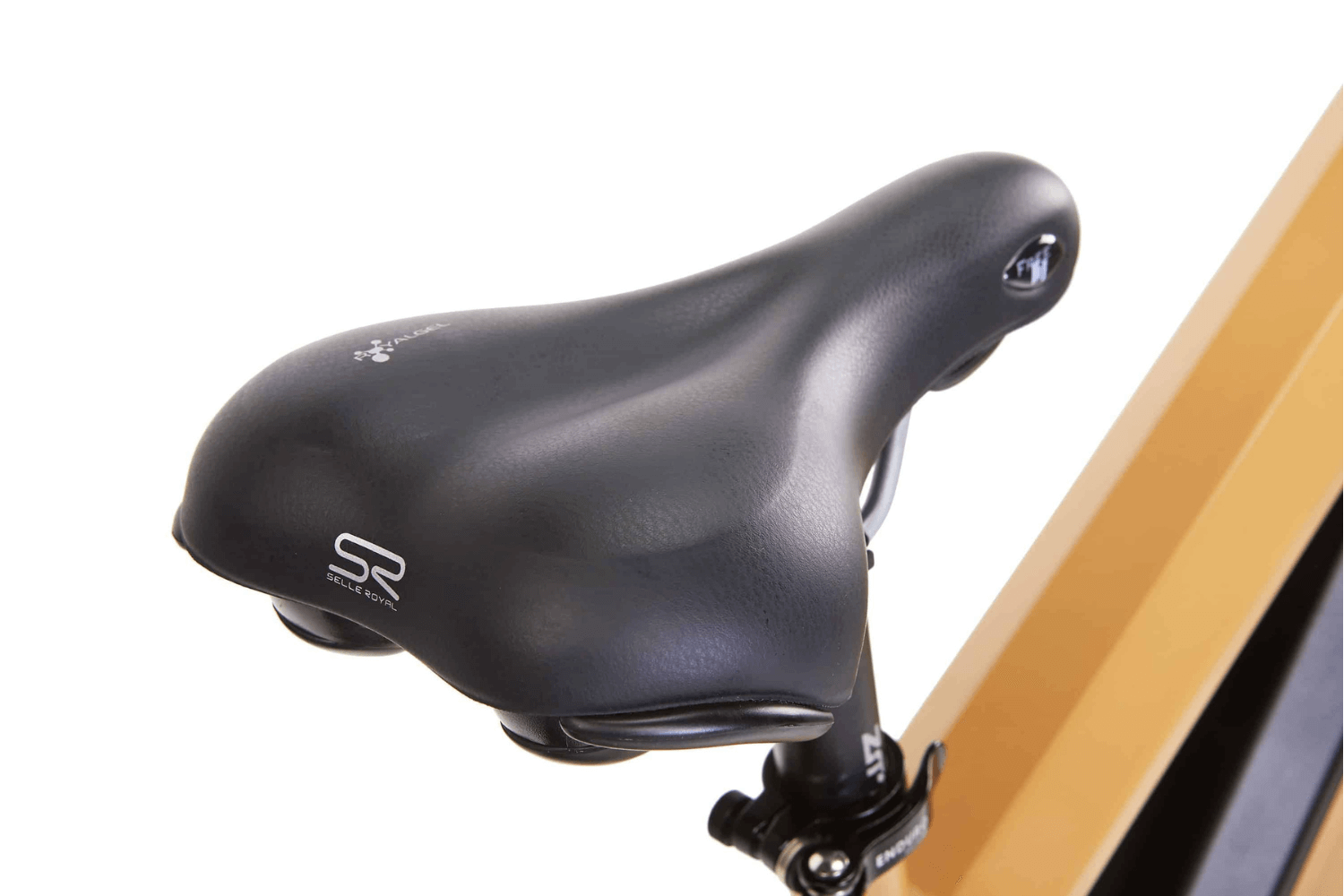

Saddle: SR Saddle

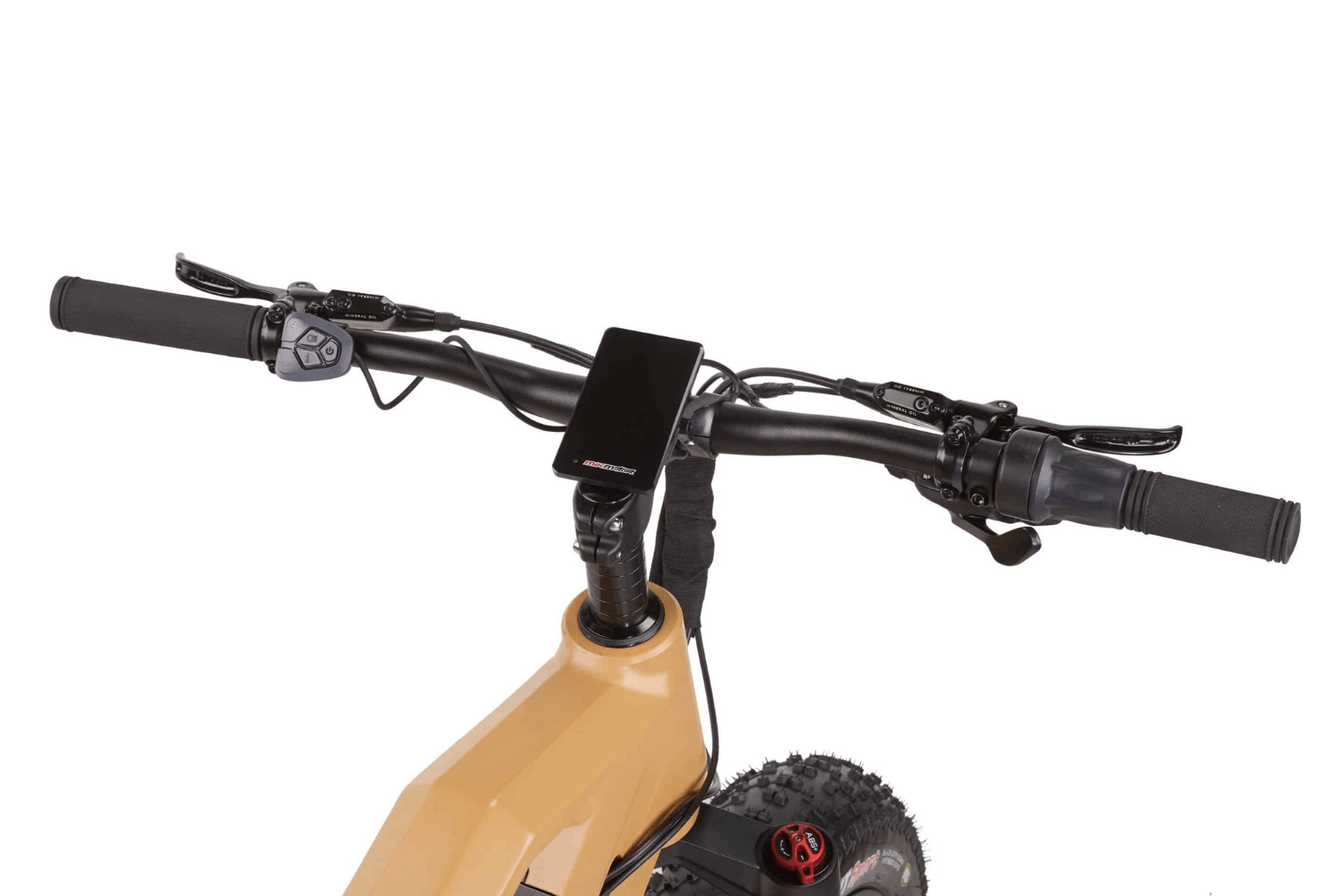

Handle Bar: Promax Aluminum Alloy, Promax 740 mm Length, Low Rise
Stem: Aluminum 31.8*60 mm Fixed
Grips: Velo Grips Lock On
